YXVF7106-6W A 3 Phase 6 Ncej 220v 50hz Induction Tsav

Title:

YXVF7106-6W VVVF Peb-theem Induction Tsav

Lus Taw Qhia

Qhov no YXVF7106-6W lub cev muaj zog,3 theem 6 ncej 220v 50hz induction lub cev muaj zogyog tsim los ntawm SIMO MOTOR, ib tug ua lag luam nyob rau hauv Tuam Tshoj lub siab - fais fab kev lag luam. Tsim los rau hnyav- cov ntawv thov kev lag luam, nws ua ke nrog kev tsim kho qib siab nrog kev ua haujlwm txhim khu kev qha kom ua tau raws li qhov xav tau ntawm kev ua haujlwm tsis tu ncua hauv qhov chaw hnyav.

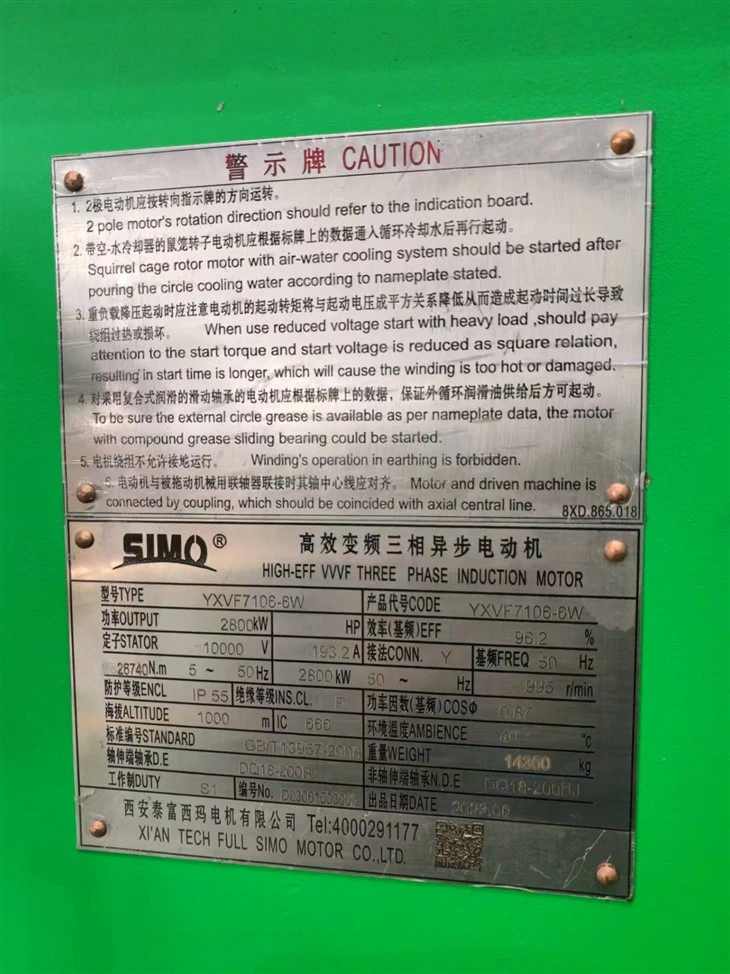

Nrog rau qhov tso zis ntawm 2800 kW, lub cev muaj zog,3 theem 6 ncej 220v 50hz induction lub cev muaj zogUa haujlwm ntawm stator voltage ntawm 10,000 V thiab qhov ntsuas tam sim no ntawm 193.2 A, xa cov ntsuas torque ntawm 26,740 N·m thoob plaws ntau zaus ntawm 5-50 Hz. Nws Y-kev sib txuas tsim thiab 96.2% kev ntsuas kev ua tau zoo tshaj qhov ntsuas kev lag luam, txo qis zog poob thiab txo cov nqi ua haujlwm. Lub cev muaj zog ua tiav qhov ntsuas ceev ntawm 995 r / min, ua kom lub zog sib kis tau zoo thiab ruaj khov rau siab - daim ntawv thov torque.

Ua kom tiv taus cov xwm txheej nruj, lub cev muaj zog muaj qhov ntsuas IP55 tiv thaiv plua plav thiab dej tsis kam, ua ke nrog F-chav tsev rwb thaiv tsev rau thermal stability. Nws IC666 kaw- voj huab cua- dej txias ua haujlwm tau zoo dissipates tshav kub, tswj kev ua haujlwm kom zoo txawm tias nyob rau hauv tag nrho cov load. Lub cev muaj zog txhawb nqa S1 tas mus li lub luag haujlwm thiab raug tsim los ua kom muaj kev ntseeg siab ntawm qhov siab txog 1,000 m thiab ambient kub ntawm 40 degree.

Ua raws li lub teb chaws tus qauv GB / T13957-2008, cov qauv no suav nrog cov khoom sib xyaw ua ke, suav nrog DC18-2006 series zawv zawg bearings nrog cov lubrication sib xyaw, kom ntseeg tau tias lub neej ua haujlwm ntev. Zoo tagnrho rau kev lag luam xws li metallurgy, tsim hluav taws xob, thiab kev kho dej, YXVF7106-6W,3 theem 6 ncej 220v 50hz induction lub cev muaj zogmuab lub zog, muaj zog -kev daws teeb meem rau kev lag luam tseem ceeb.

Main Technical Parameters

Paub meej ntau lawm

Ncej

• Box qauv ncej, yooj yim rau kev tswj thiab installation

• Saj zawg zog qhov ntev

• Customizable outlook

---

Stator

• 99.9% ntshiab tooj liab winding kom lub zog tso zis thiab efficiency

• Kev rwb thaiv tsev zoo heev nrog 5 kev ua haujlwm ntxiv

• Tag nrho cov windings yog tsim los ntawm tes ua haujlwm los xyuas kom meej tias tag nrho cov slots yog tag nrho thiab tsis txhob muaj qhov ua yuam kev winding.

---

Rotor

• Aluminium casting rotor nrog zoo silicon steel rotor core kom paub meej induction efficiency

• Tooj liab bar rotor muaj rau YXVF lub cev muaj zog

• Pprecisely machined ncej nrog zoo muaj peev xwm ntawm toughness

---

Kev sim

• Txhua lub cev muaj zog yuav tsum dhau qhov kev sim ua ntej pleev xim thiab ntim khoom

• Peb tsis tu ncua sim cov khoom uas twb muaj lawm thiab tshiab los xyuas kom meej qhov zoo.

---

Ntim thiab xa khoom

• Tag nrho cov motors yuav raug ntim zoo ua ntej xa khoom

• Yas npog sab hauv, lub tshuab nqus tsev tin foil sab nraud thiab tom qab ntawd cov khoom siv ntoo

---



Daim ntawv thov

YXVF Lub cev muaj zog yog siv dav hauv ntau qhov kev lag luam, xws li tshuab tshuab, twj, crushers, txiav tshuab, thiab ntau lwm cov tshuab hnyav. Yog xav paub ntxiv txog daim ntawv thov, hu rau peb.

Cement

Chaw nres tsheb fais fab

Kev txuag dej

Hlau

Xaiv SIMO, xaiv qhov zoo!
