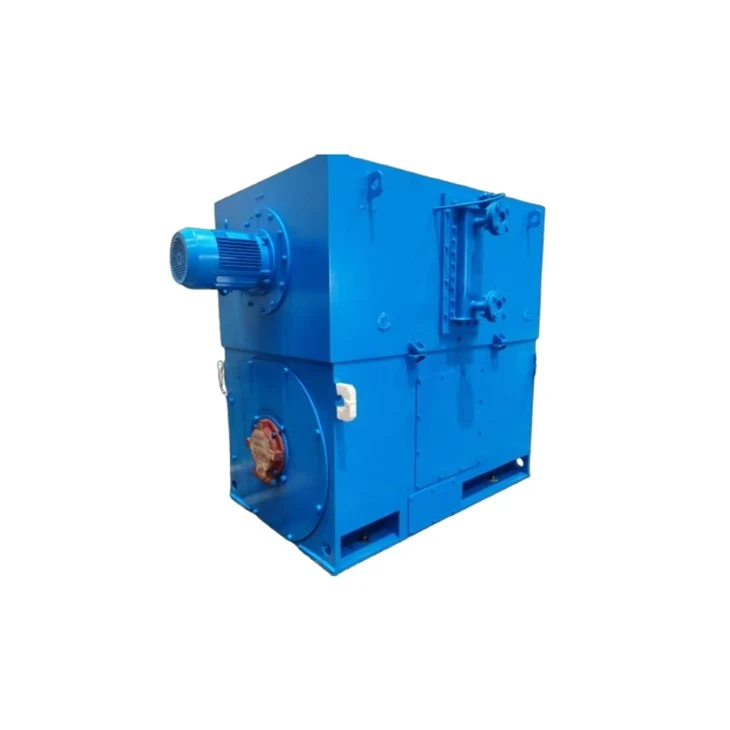

YJTKS4501 VVVF AC Squirrel Cage Induction Tsav 450kW

Title:

YJTKS4501 VVVF peb-theem Asynchronous Tsav

Lus Taw Qhia

Tsim los ntawm Xi'an SIMO lub cev muaj zog - tus thawj coj ntseeg siab hauv kev lag luam hluav taws xob daws teeb meem -YJTKS4501-6XJ yog lub zog lojAC squirrel tawb induction lub cev muaj zogtsim los daws cov kev xav tau nruj tshaj plaws hauv kev lag luam. Nrog rau 450 kW kev ntsuam xyuas thiab 990 r / min synchronous ceev, nws muab ib tug formidable 4297 N·m ntawm torque, muab cov nqaij ntshiv uas yuav tsum tau rau hnyav, tsis yog - nres ua hauj lwm thaum tswj kev ua hauj lwm tshwj xeeb.

Cov cwj pwm zoo

Kev lag luam-Kev ua tau zoo: Boasting 94.5% kev ntsuas kev ua haujlwm thiab 0.88 lub zog, qhov noAC squirrel tawb induction lub cev muaj zogminimizes zog noj, ncaj qha txo cov nqi khiav hauj lwm thiab txhawb sustainability lub hom phiaj rau industrial chaw.

Dynamic Speed ​​Adaptability: Lub 5–50 Hz zaus ntau yam muaj meej, stepless ceev tswj, cia cov neeg ua haujlwm zoo - kho qhov kev ua tau zoo kom phim qhov sib txawv load thiab ua kom cov txheej txheem ua tau zoo.

Ua rau Harsh Environments: Nrog IP54 ingress tiv thaiv ntsuas thiab IC 86W cua txias system, nws tiv taus plua plav, dej txau, thiab qhov kub thiab txias mus txog 40 degree. F-chav kawm (155 degree) rwb thaiv tsev thiab hnyav-lub luag haujlwm dual bearings (NU228ECM/6226/C3) kom ntev{10}}kev cia siab rau lub sijhawm thiab kev saib xyuas tsawg, txawm tias muaj kev ntxhov siab heev.

Cov Khoom Siv Zoo Tshaj Plaws

Qhov noAC squirrel tawb induction lub cev muaj zogyog tus neeg ua haujlwm tom qab kev ua haujlwm tseem ceeb hauvmining, cement manufacturing, dej kho, thiab metallurgy, tsav tsheb loj twj, kiv cua, compressors, thiab conveyor systems. Nws S1 lub voj voog ua haujlwm tas mus li thiab qhov tso tawm lub zog ruaj khov ua rau nws mus - rau kev xaiv rau cov ntawv thov uas lub sijhawm poob qis tsis yog qhov kev xaiv.

Main Technical Parameters

Vim li cas thiaj xaiv Simo BrandYJTKSseries ntawm Motor?

Lub YJTKS4501-6XJ sawv tawm rau nws txoj kev sib koom ua ke ntawm ruggedness thiab ntse engineering. Nws IM B3 mounting tsim thiab optimized 3520 kg hnyav streamline installation, thaum ua raws li lub ntiaj teb no cov qauv xyuas kom meej seamless kev koom ua ke rau thoob ntiaj teb tej yaam num. Rau cov lag luam uas xav tau lub cev muaj zog uas xa ob lub zog thiab qhov tseeb, qhov no yog qhov kev daws teeb meem rau kev lag luam niaj hnub no.

Paub meej ntau lawm

Ncej

• Box qauv ncej, yooj yim rau kev tswj thiab installation

• Flexible rau qhov tshwj xeeb installation qhov ntev

• Customizable outlook thiab qhov ntev

---

Stator

• 99.9% ntshiab tooj liab winding rau stator los xyuas kom meej lub hwj chim thiab efficiency

• Kev rwb thaiv tsev zoo heev nrog 5 kev ua haujlwm ntxiv

• Tag nrho cov windings yog tsim los ntawm tes ua haujlwm los xyuas kom meej tias tag nrho cov slots yog tag nrho thiab tsis txhob muaj qhov ua yuam kev winding.

---

Rotor

• Aluminium casting rotor nrog zoo silicon steel rotor core kom paub meej induction efficiency

• Copper bar rotor muaj rau YKK lub cev muaj zog

• Zoo thiab precisely machined ncej nrog zoo muaj peev xwm ntawm lub zog thiab toughness

---

Kev sim

• Tag nrho cov motors yuav tsum xeem dhau cov khoom kuaj ua ntej pleev xim thiab ntim

• Hom kev xeem yuav raug ua tsis tu ncua rau txhua series, ntau zaus rau cov qauv tsim tshiab thiab ntau yam.

---

Ntim thiab xa khoom

• Tag nrho cov motors yuav raug ntim zoo ua ntej xa khoom

• Yas npog sab hauv, lub tshuab nqus tsev tin foil sab nraud thiab tom qab ntawd cov khoom siv ntoo

---



Daim ntawv thov

Cement

Chaw nres tsheb fais fab

Dej

Mining

Xaiv SIMO, xaiv qhov zoo!
