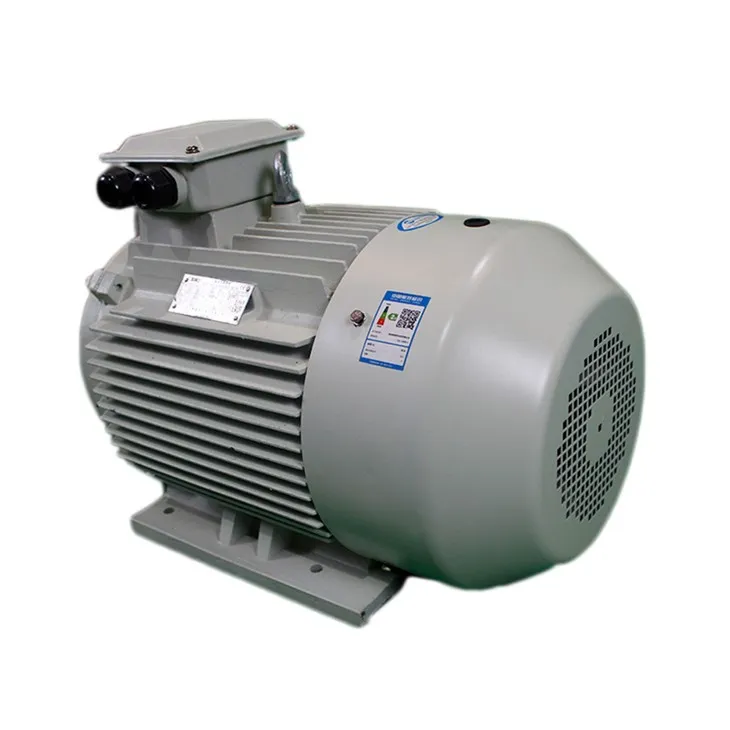

YE3-355M-2-250KW-380V-IP55
Hauj lwm lawm
Kev tsis
Daim ntawv Dimensions
Main Technical Parameters
|
Ncej: |
H355 |
|
Hwj chim Scope: |
250 KW TSI |
|
Voltage: |
380V, 400V, 415V, 460V, 490V, 660V, 690V |
|
Ntau zaus: |
50Hz, 60Hz |
|
Number of Ncej: |
2P, 4P, 6P, 8P, 10P, 12P |
|
Ceev: |
3000 rpm |
|
Txias Mechod |
SIB 411 |
|
Qib tiv thaiv |
IP55 |
|
Rwb thaiv tsev Class |
F (155 degree), H (180 degree) |
|
Lub luag haujlwm: |
S1, S4, S5, S6, S9 |
|
Mounting Hom |
B3/ B5/ B35/ V1 |
|
Txheem: |
IEC |
|
Qib Efficiency: |
IE 3 |
Khoom Taw Qhia
Cov duab ntawm lub rotor no zoo ib yam li cov duab ntawm lub tawb ntawm tus squirrel. Yog li ntawd, lub cev muaj zog no hu ua squirrel tawb induction motor. Kev tsim kho ntawm hom rotor no yooj yim heev thiab rugged. Yog li, yuav luag 80% ntawm lub induction lub cev muaj zog yog squirrel tawb induction motor. Lub rotor muaj ib tug cylindrical laminated core thiab muaj cov slots nyob rau sab nrauv periphery. Cov slots tsis yog sib npaug tab sis nws yog skewed ntawm qee lub kaum ntse ntse. Nws pab tiv thaiv kev sib nqus sib nqus ntawm cov stator thiab rotor cov hniav. Nws ua rau kev ua haujlwm du thiab txo cov suab nrov humming. Nws nce qhov ntev ntawm tus neeg xyuas pib rotor vim qhov no lub rotor kuj tau nce. Lub squirrel tawb rotor muaj rotor tuav es tsis txhob rotor winding. Cov rotor tuav yog ua los ntawm txhuas, tooj dag, los yog tooj liab.
Rotor tuav tau luv luv los ntawm cov nplhaib kawg. Yog li, nws ua tiav txoj hauv kev ze ntawm lub rotor circuit. Cov rotor tuav yog welded los yog braced nrog lub nplhaib kawg los muab kev txhawb nqa txhua yam. Cov rotor tuav yog luv luv. Yog li ntawd, nws tsis tuaj yeem ntxiv cov kev tiv thaiv sab nraud rau lub rotor circuit. Nyob rau hauv hom rotor no, cov hlua khi thiab txhuam tsis siv. Li no, kev tsim kho ntawm hom no lub cev muaj zog yog yooj yim dua thiab muaj zog dua.
Qhov kawg terminals ntawm rotor windings yog txuas nrog cov hlua khi. Yog li, lub cev muaj zog no hu ua lub nplhaib ntiv nplhaib induction. Kev tiv thaiv sab nraud tuaj yeem yooj yim txuas nrog lub rotor Circuit Court los ntawm lub nplhaib-ntiv nplhaib thiab txhuam. Thiab nws yog ib qho tseem ceeb heev rau kev tswj qhov ceev ntawm lub cev muaj zog thiab txhim kho qhov pib torque ntawm peb-theem induction lub cev muaj zog.
Cim npe nrov: ye3-355m-2-250kw-380v-ip55, Tuam Tshoj, lwm tus neeg, manufacturers, hoobkas, customized, hais, luv nqi, Tshuag, ua nyob rau hauv Suav teb
|
Hom |
Rated zog |
Rated Qhov hluav taws xob |
Rated Tam sim no |
Ceev |
Kev ua tau zoo |
Hwj chim Factor |
Xauv torque |
Xauv tam sim no |
Max. lub zog |
Rated Torque |
Inertia |
Tsis-Load Suab nrov |
Qhov hnyav |
|
Rated Torque |
Rated Tam sim no |
Rated Torque |
|||||||||||
|
Synchronous ceev 3000r / min |
|||||||||||||
|
YOG3-355M-2 |
250 |
380 |
436 |
2980 |
95.8 |
0.91 |
1.6 |
7.5 |
2.2 |
796 |
3.27 |
100 |
1560 |
