YRKK 630-6GR Peb-theem Asynchronous High Voltage Fais Fab 10kv 1600kw

Lus Taw Qhia

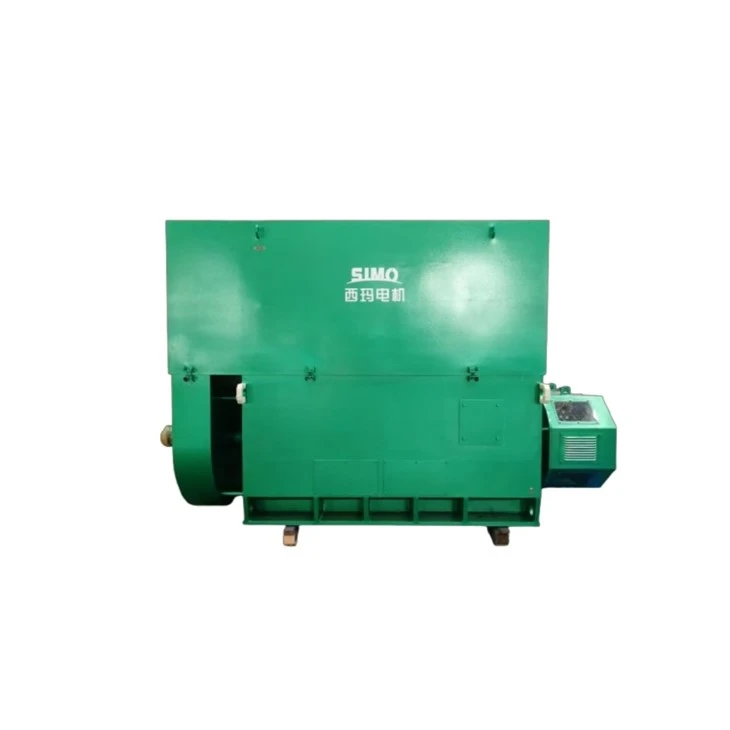

YRKK series siab-voltage mob rotor peb-theem asynchronous lub cev muaj zog los ntawm SIMO sawv raws li koj qhov kev ntseeg siab hnyav- lub luag haujlwm lub zog siv los ntawmhigh voltage fais fab mov 10kv. Kev tsim tshwj xeeb rau kev ua haujlwm nyuaj rau kev lag luam, lub tshuab no ua tau zoo hauv cov ntawv thov uas xav tau siab pib lub zog, dav siv hauv metallurgy, mining, petrochemical, cement thiab hydropower sectors. YRKK630-6GT qauv qhia muab lub zog ntsuas ntawm 1600kW nrog 6 tus ncej thiab ntsuas ceev ntawm 995r / min. Ua nrog huab cua- dej txias kev tsim kho, IP54 qib tiv thaiv thiab Class 155 rwb thaiv tsev, nws siv S1 lub luag haujlwm txuas ntxiv los lav tsis yog- nres, kev ua haujlwm ntev ntev rau koj cov khoom siv tseem ceeb.

Tsis zoo li cov pa squirrel tawb motors, YRKK qhov txhab rotor tsim tso cai rau sab nraud pib resistors txuas rau hauv lub rotor Circuit Court thaum pib. Cov qauv ntse no muaj txiaj ntsig zoo suppresses inrush pib tam sim no thiab txo qis kev cuam tshuam rau kab sib chaws, qhov txiaj ntsig tseem ceeb tshwj xeeb tshaj yog thaum khiav hauv qabhigh voltage fais fab mov 10kv. Qhov kawg tsav siv NU238ECM cov kabmob thaum tsis yog- tsav kawg siv 6336/C3 bearing. Nruab nrog optimized compound zawv zawg bearing lubrication system, nws tuav ruaj khov lubrication nyob rau hauv hnyav shock loads. Ob leeg stator thiab rotor siv Chav Kawm 155 cua sov- cov ntaub ntawv rwb thaiv tsev tiv thaiv, zoo heev txhim kho kev tiv thaiv overload thiab ncua kev pab cuam lub neej ntawm tag nrho lub tshuab. Nws cov huab cua-dej cua txias system yuav tsum tau ua kom cov dej txias ua ntej ua haujlwm, ua kom sov sab hauv kom ruaj khov txawm tias nyob rau hauv kev ua haujlwm puv -loading.

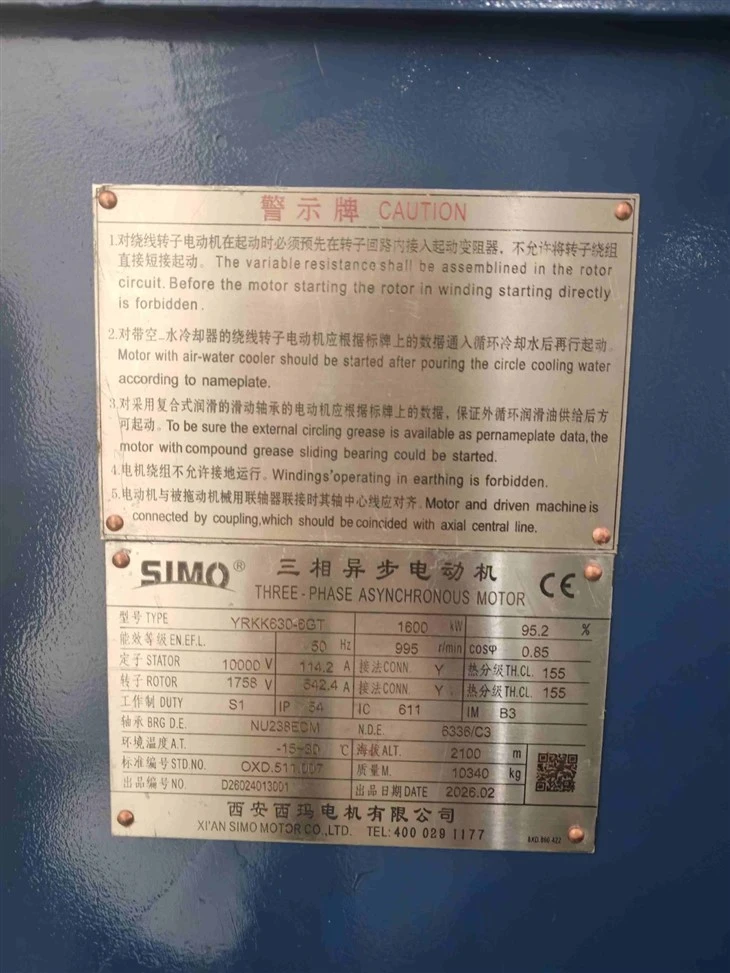

Peb cov motors yog tsim los nrog cov qauv zoo thiab cov lus qhia meej txog kev ua haujlwm. Direct luv-circuit startup ntawm rotor windings raug txwv. Sab nraud pib sib txawv kuj yuav tsum tau haum rau lub rotor voj ua ntej pib. Winding lag luam nrog earthing faults yog tsis tso cai. Thaum lub sij hawm kev teeb tsa, kev ua kom zoo ntawm cov axial centerlines yog qhov yuav tsum tau ua ke nrog cov tshuab tsav, kom tsis txhob muaj kev vibration ntau dhau thiab kev puas tsuaj. Adaptable rau ambient kub xws li -15℃mus rau 40℃thiab altitude mus txog 2100 meters, nws ua tau kev ntseeg siab nyob rau hauv hnyav, complex teb ib puag ncig thoob ntiaj teb tej yaam num.

Kev khav theeb nruj cov qauv siv tshuab thiab qis- kev vibration kev ua haujlwm, YRKK series ua rau koj cov khoom siv poob qis thiab kev siv nyiaj txij nkawm. Nws ua haujlwm raws li qhov nyiam tsav tsheb rau cov pob zeb, kiv cua loj, crushers thiab hnyav - dej twj tso kua mis. Thaum sib phim nroghigh voltage fais fab mov 10kv,lub cev muaj zog no tuaj yeem txuas ntxiv tso tawm lub zog loj thaum muaj txiaj ntsig zoo txo ​​cov kab sib cuam tshuam thaum pib. Txhua chav ua haujlwm dhau los ntawm kev kuaj xyuas lub Hoobkas thiab tuav daim ntawv pov thawj CE. Peb txhawb kev hloov kho qhov ntsuas raws li koj qhov kev xav tau tshwj xeeb, xa cov khoom ruaj khov, tus nqi - hnyav hnyav - thauj khoom tsav tsheb rau cov neeg siv khoom thoob ntiaj teb.

Main Technical Parameters

Paub meej ntau lawm

Ncej

• Box qauv ncej, yooj yim rau kev tswj thiab installation

• Flexible rau qhov tshwj xeeb installation qhov ntev

• Customizable outlook thiab qhov ntev

---

Stator

• 99.9% ntshiab tooj liab winding rau stator los xyuas kom meej lub hwj chim thiab efficiency

• Kev rwb thaiv tsev zoo heev nrog 5 kev ua haujlwm ntxiv

• Tag nrho cov windings yog tsim los ntawm tes ua haujlwm los xyuas kom meej tias tag nrho cov slots yog tag nrho thiab tsis txhob muaj qhov ua yuam kev winding.

---

Rotor

• Aluminium casting rotor nrog zoo silicon steel rotor core kom paub meej induction efficiency

• Copper bar rotor muaj rau YKK lub cev muaj zog

• Zoo thiab precisely machined ncej nrog zoo muaj peev xwm ntawm lub zog thiab toughness

---

Kev sim

• Tag nrho cov motors yuav tsum xeem dhau cov khoom kuaj ua ntej pleev xim thiab ntim

• Hom kev xeem yuav raug ua tsis tu ncua rau txhua series, ntau zaus rau cov qauv tsim tshiab thiab ntau yam.

---

Ntim thiab xa khoom

• Tag nrho cov motors yuav raug ntim zoo ua ntej xa khoom

• Yas npog sab hauv, lub tshuab nqus tsev tin foil sab nraud thiab tom qab ntawd cov khoom siv ntoo

---



Daim ntawv thov

Cement

Chaw nres tsheb fais fab

Dej

Mining

Xaiv SIMO, xaiv qhov zoo!
