YXKK355-4SZ Peb-theem Asynchronous 355kw Lub cev muaj zog 50 Hz

Title:

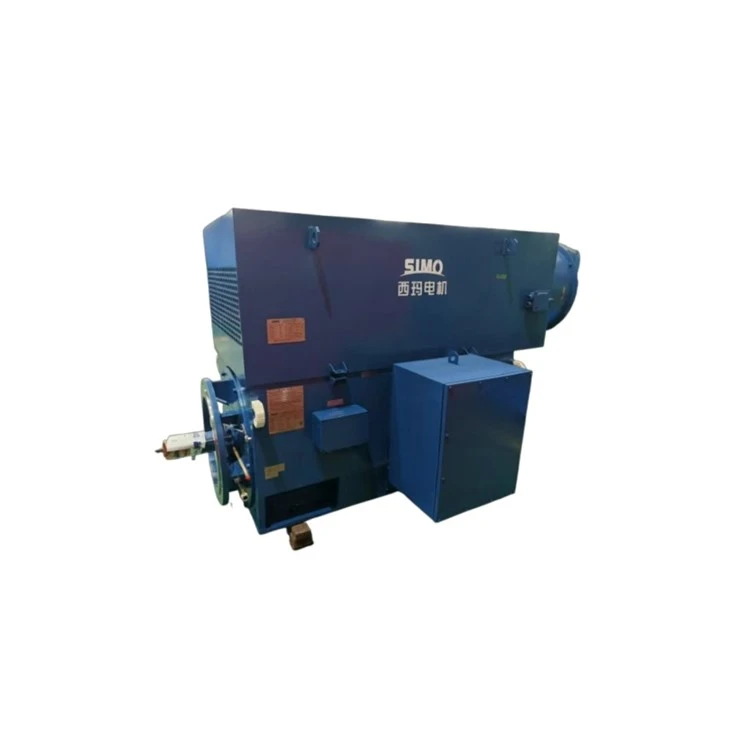

YXKK355-4SZ Peb-theem Asynchronous Tsav

Lus Taw Qhia

CovSIMO YXKK355-4SZ 355kw lub cev muaj zogyog ib qho kev ua haujlwm siab -voltage, siab- zog peb-theem asynchronous motor meticulously engineered thiab manufactured los ntawm Xi'an SIMO Motor Co., Ltd., ib tug ua lag luam nyob rau hauv Tuam Tshoj txoj kev lag luam lub cev muaj zog nrog ntau xyoo ntawm kev paub nyob rau hauv crafting industrial- qib tsav kev daws teeb meem. Tsim tshwj xeeb rau qhov hnyav-lub luag haujlwm, txuas ntxiv- cov xwm txheej ua haujlwm, lub cev muaj zog no tau tsim los ua lub zog tseem ceeb rau cov khoom siv tseem ceeb, suav nrog cov kiv cua loj - nplai qhov cua, siab - compressors, hnyav- lub luag haujlwm conveyors, thiab cov twj siv hluav taws xob hauv cov khoom siv hluav taws xob, xws li cov khoom siv hluav taws xob thiab cov khoom siv hluav taws xob, xws li hlau.

Tsim los ua haujlwm ntawm 50 Hz fais fab mov, YXKK355-4SZ355kw lub cev muaj zogboasts lub zog tso zis ntawm 355 kW, ib qho hluav taws xob stator ntawm 10000 V, thiab qhov ntsuas stator tam sim no ntawm 25.6 A, xa cov nominal ceev ntawm 1485 rpm- zoo tagnrho rau cov ntawv thov uas xav tau qhov sib xws, nruab nrab - ceev torque xa. Nws txoj kev tsim hluav taws xob txais yuav Y-kev sib txuas (lub hnub qub kev sib txuas) kev teeb tsa, ua kom muaj qhov sib npaug peb-theem tam sim no faib thiab txo qhov tsis sib xws ntawm cov khoom siv sab hauv. Lub cev muaj zog yog ntsuas rau S1 tas li lub luag haujlwm, txhais tau tias nws yog tsim los khiav ntawm tag nrho cov load 24 teev nyob rau ib hnub, 7 hnub hauv ib lub lis piam, tsis muaj kev ua haujlwm degradation lossis overheating txaus ntshai, ib qho tseem ceeb tsim feature rau kev lag luam uas tsis yog -stop ntau lawm cov sij hawm.

Nyob rau hauv cov nqe lus ntawm ib puag ncig adaptability, YXKK355-4SZ ua tau zoo nyob rau hauv ntau hom kev ua haujlwm. Nws raug ntsuas los ua haujlwm nyob rau hauv qhov kub thiab txias li ntawm -15℃mus rau 40℃thiab ntawm qhov siab txog li 1000 meters, ua rau nws haum rau ob qho tib si txias sab qaum teb kev lag luam zones thiab nruab nrab -altitude manufacturing chaw. Lub cev muaj zog yog haum nrog siab-precision bearings: NU222ECM ntawm qhov kawg tsav (DE) thiab 6222/C3 ntawm qhov tsis yog- tsav kawg (NDE), xaiv rau lawv cov load siab-cov kabmob muaj peev xwm thiab qis- kev sib txhuam ua haujlwm, uas ua kom muaj kev sib hloov thiab siv sijhawm ntev dua.2} siv sijhawm ntev Qhov hnyav 2890 kg, nws cov cam khwb cia-hlau thav duab muaj qhov tshwj xeeb ntawm cov qauv kev ruaj ntseg, dampening vibration thiab ua kom muaj kev sib haum xeeb nrog cov tshuab tsav - qhov yuav tsum tau muaj nyob rau hauv lub cev muaj zog cov lus ceeb toom rau kev txuas txuas.

Los ntawm kev ua raws cai thiab kev pom zoo, YXKK355-4SZ ua raws nraim li Q/XD.510.316 tus qauv kev lag luam, tus qauv nruj rau kev tsim hluav taws xob siab, thiab tuav daim ntawv pov thawj CE, xyuas nws ua raws li European Union kev noj qab haus huv, kev nyab xeeb, thiab kev tiv thaiv ib puag ncig. Qhov kev ua raws li ob txoj cai no ua kom muaj kev sib koom ua ke tsis sib haum xeeb rau hauv ob qho tib si hauv Suav teb kev lag luam thiab cov khoom siv thoob ntiaj teb, tshem tawm cov kev cai txwv rau cov neeg siv khoom thoob ntiaj teb. Ua nyob rau lub Kaum Ob Hlis 2026, chav tsev no tau txais txiaj ntsig los ntawm Xi'an SIMO cov txheej txheem tsim khoom tshiab thiab cov txheej txheem tswj kom zoo, ntxiv kev lav cov khoom sib xws thiab kev ntseeg tau.

SIMO YXKK355-4SZ355kw lub cev muaj zogsawv tawm nyob rau hauv lub siab - lub hwj chim lub lag luam vim lub suite ntawm lub hom phiaj zoo uas hais txog cov ntsiab lus mob ntawm cov neeg siv kev lag luam: Ua ntej,kev lag luam- ua kom muaj zog ua haujlwm-nrog rau 93.2% kev ntsuas kev ua tau zoo thiab 0.86 lub zog, nws txo qis kev siv hluav taws xob piv rau cov qauv motors, txhais tau ntev heev -cov nqi txuag ntawm cov nqi hluav taws xob rau siab - ntim cov haujlwm. Thib ob,txhim kho thermal thiab mechanical durability-Class 155 rwb thaiv tsev muab kev tiv thaiv zoo rau qhov kub thiab txias, thaum hnyav - lub luag hauj lwm bearing configuration thiab S1 lub luag hauj lwm voj voog ntsuam xyuas xyuas kom lub neej ntev kev pab cuam thiab tsawg kawg nkaus tsis npaj downtime. Peb,unmatched ib puag ncig versatility-Nws muaj peev xwm ua haujlwm thoob plaws qhov kub thiab txias ntawm qhov nruab nrab qhov siab ua rau nws hloov tau yooj yim rau ntau qhov chaw tsim khoom, tshem tawm qhov xav tau kev hloov kho kev cai. Plaub,ntiaj teb no ua raws thiab compatibility-CE daim ntawv pov thawj thiab cov qauv mounting qhov ntev pab kom yooj yim kev koom ua ke rau hauv cov khoom uas twb muaj lawm thoob ntiaj teb, ua kom yooj yim retrofits thiab tshiab installation ib yam nkaus. Thaum kawg,ntseeg hom kev txhawb nqa- txhawb nqa los ntawm Xi'an SIMO qhov kev qhia dav tom qab - kev muag khoom network, suav nrog kev sab laj kev lag luam, cov khoom siv khoom seem, thiab ntawm - kev saib xyuas qhov chaw, cov neeg siv tau txais ib tus khub txhim khu kev qha rau tag nrho lub neej ntawm lub cev muaj zog, ua kom lub sijhawm ua haujlwm siab tshaj plaws thiab rov qab los ntawm kev nqis peev.

Main Technical Parameters

Vim li cas thiaj xaiv Simo Hom YXKK series ntawm Tsav?

CovSIMO YXKK seriesyog qhov kev xaiv saum toj kawg nkaus rau hnyav- lub luag haujlwm kev lag luam siv, xa cov kev ua haujlwm siab (txog 93.2%) thiab kev ua haujlwm txhim khu kev qha. Nrog kev tsim kho zoo, Chav Kawm 155 rwb thaiv tsev, thiab daim ntawv pov thawj CE, nws ua kom muaj kev ruaj ntseg hauv ntau qhov chaw. Rov qab los ntawm Xi'an SIMO qhov kev txawj ntse, cov koob no txo ​​qis cov nqi kho thiab ua kom muaj txiaj ntsig zoo tshaj plaws rau cov ntawv thov tseem ceeb.

Paub meej ntau lawm

Ncej

• Box qauv ncej, yooj yim rau kev tswj thiab installation

• Saj zawg zog qhov ntev

• Customizable outlook

---

Stator

• 99.9% ntshiab tooj liab winding kom lub zog tso zis thiab efficiency

• Kev rwb thaiv tsev zoo heev nrog 5 kev ua haujlwm ntxiv

• Tag nrho cov windings yog tsim los ntawm tes ua haujlwm los xyuas kom meej tias tag nrho cov slots yog tag nrho thiab tsis txhob muaj qhov ua yuam kev winding.

---

Rotor

• Aluminium casting rotor nrog zoo silicon steel rotor core kom paub meej induction efficiency

• Copper bar rotor muaj rau YKK lub cev muaj zog

• Pprecisely machined ncej nrog zoo muaj peev xwm ntawm toughness

---

Kev sim

• Txhua lub cev muaj zog yuav tsum dhau qhov kev sim ua ntej pleev xim thiab ntim khoom

• Peb tsis tu ncua sim cov khoom uas twb muaj lawm thiab tshiab los xyuas kom meej qhov zoo.

---

Ntim thiab xa khoom

• Tag nrho cov motors yuav raug ntim zoo ua ntej xa khoom

• Yas npog sab hauv, lub tshuab nqus tsev tin foil sab nraud thiab tom qab ntawd cov khoom siv ntoo

---



Daim ntawv thov

YXKK355 Lub cev muaj zog yog siv dav hauv ntau qhov kev lag luam, xws li tshuab tshuab, twj, crushers, txiav tshuab, thiab ntau lwm cov tshuab hnyav. Yog xav paub ntxiv txog daim ntawv thov, hu rau peb.

Cement

Chaw nres tsheb fais fab

Kev txuag dej

Hlau

Xaiv SIMO, xaiv qhov zoo!
